TFE.2, Figure 2 - Compilation of paleo sea level data

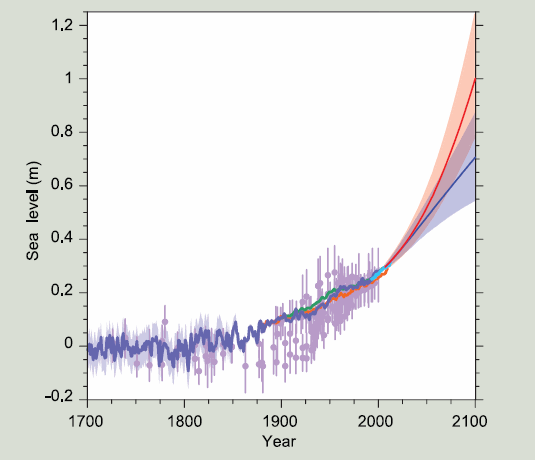

TFE.2, Figure 2 - Compilation of paleo sea level data (purple), tide gauge data (blue, red and green), altimeter data (light blue) and central estimates and likely ranges for projections of global mean sea level rise from the combination of CMIP5 and process-based models for RCP2.6 (blue) and RCP8.5 (red) scenarios, all relative to pre-industrial values. {Figures 13.3, 13.11, 13.27}

Source: IPCC  Climate Change 2013: Technical Summary, p.49
